Gravity Roller Conveyors
We manufacture stand-alone gravity roller conveyors for integration as well as complete gravity roller conveyor systems.
Gravity roller conveyors are ideal for moving unit loads including cardboard boxes, trays, crates, and totes. They are widely used across all types of manufacturing, warehouse and logistics applications.
We are a UK-based conveyor system manufacturer, and as such, we can produce gravity conveyors to meet your exact requirements. From a one-off gravity conveyor module to a fully integrated Lean packing and assembly workstation, we manufacture all roller conveyors to the highest quality.
For urgent requirements, we have a range of standard conveyors available for fast delivery to suit urgent requirements.
We also manufacture a range of powered roller conveyors for automated conveyor applications.
All equipment is UKCA or CE marked
Please contact our team with your enquiries.
Phone: 01482 363445Â Â Â Â Email: sales@conveyorsystems.co.uk

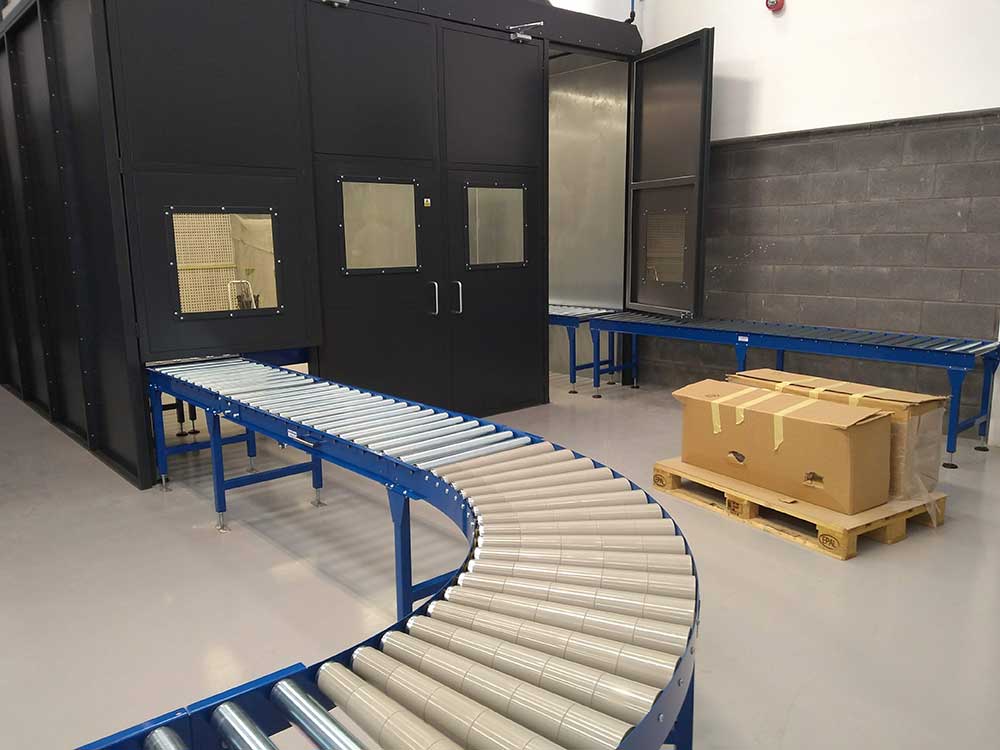

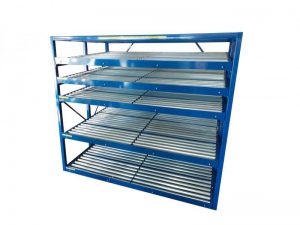

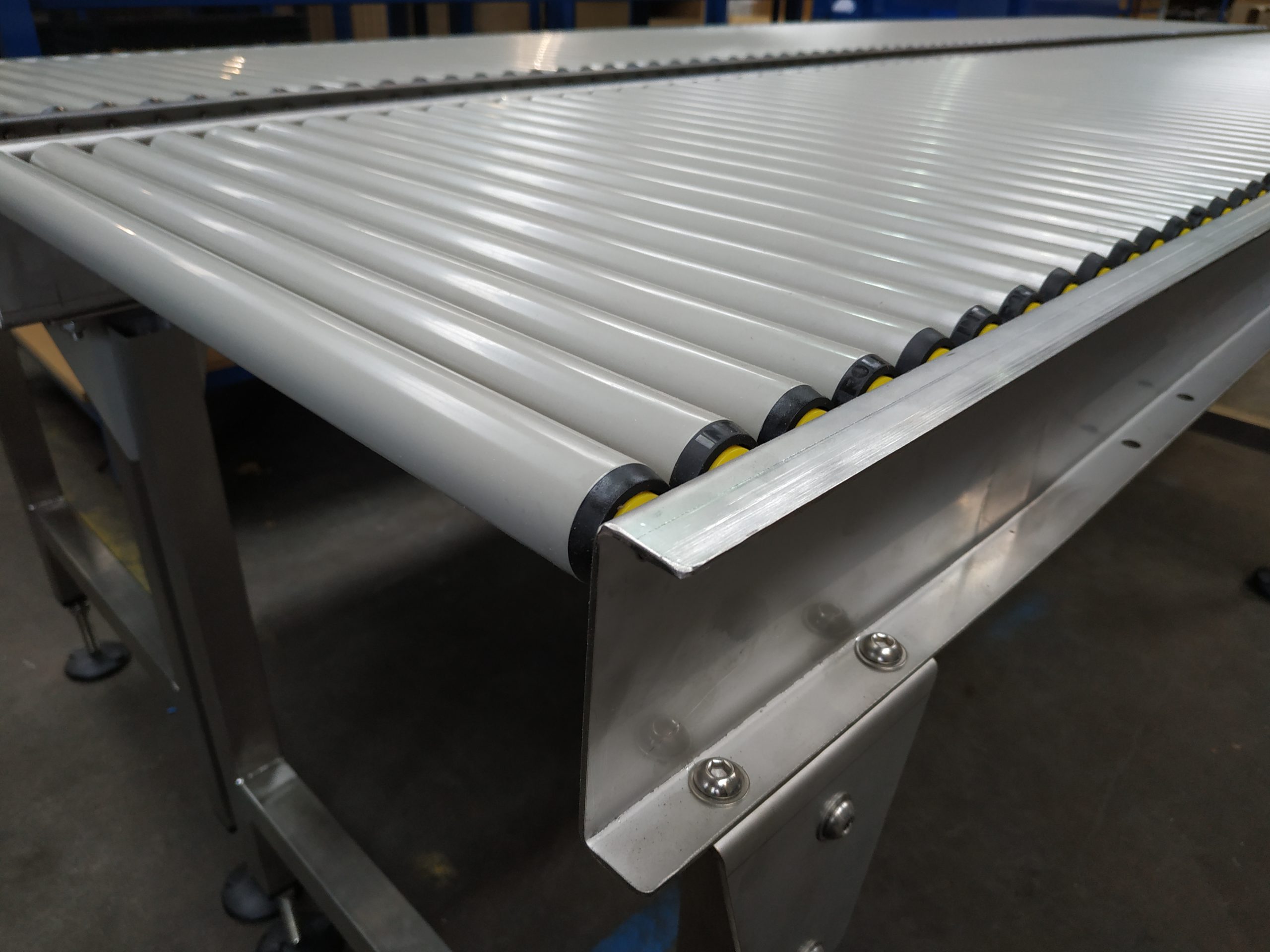

Gravity Conveyor Gallery
All the conveyors shown below were manufactured for our customers in our UK based factory.
Gravity Roller Conveyors
Information
At SPG Conveyor systems, we specialize in manufacturing high-quality gravity roller conveyors built to meet your specific industrial needs. Our range includes both standard and bespoke gravity conveyors, designed for durability and reliability, with great lead times and quick delivery.
-
Custom Gravity Conveyors
Our gravity roller conveyors are built to suit a wide variety of applications. Whether you need a single gravity conveyor or a fully integrated system for packing or assembly, we always ensure every product is manufactured to the highest standards. Choose from our range of rollers, including zinc-plated, PVC, or stainless steel, all mounted in robust steel frames that can be either powder-coated or made from stainless steel for maximum durability.
-
Designed to Your Specifications
We understand that every operation is unique, just like our clients! Which is why we customize our gravity conveyors to your exact requirements. You can select the length, width, and roller diameter to perfectly fit your application. Our experienced team works with you to deliver a solution that optimizes efficiency and meets your operational demands.
Gravity Roller Conveyor (600mm width)
Price range: £185.26 through £1,212.63
- Robust welded steel frame powder coated in blue
- High quality 50mm zinc plated rollers
- Width of 600mm
- Lengths up to 3 metres available to buy online
- Delivered fully assembled & ready for work
We also manufacture fully bespoke gravity conveyors, please contact us for details.Â
Description
Gravity Roller Conveyors for Efficient, Low-Cost Product Transportation
Our gravity roller conveyors are a cost-effective solution for transporting goods within production lines and warehouse environments. Designed for durability and smooth operation, these medium-duty gravity conveyors are built with fabricated powder-coated mild steel frames and feature high-quality, 50mm diameter zinc-plated mild steel rollers.
Each conveyor section offers a load capacity of 100kg per metre, making them ideal for a wide range of industrial applications.
We offer gravity roller conveyors in lengths of up to 3 metres, available to order online today. For longer lengths or custom requirements, please contact us directly.
Have a question or need a bespoke gravity conveyor system? Contact us via contact page or email: sales@conveyorsystems.co.uk with your requirements and we will send a free quote.
What is Roller Pitch?This is the distance between the centre of each roller, for example, the 150mm pitch will mean the rollers are spaced further apart, whilst for the 75mm pitch they are closer together.
This is why the price increases as the pitch decreases, a smaller pitch means more rollers will fit into the frame. More rollers may be necessary to allow the conveyor to hold more weight, or move smaller items.
We recommend that a minimum of 3 rollers be touching the product for the best functionality.
Gravity Roller Conveyor Specification
| Length | Up to 3 metres available to buy online
Please contact us for longer lengths |
| Width | 600mm |
| Frame | Mild steel frame, powder-coated in Blue (RAL 5010) |
| Rollers | 50mm diameter Mild Steel Zinc Plated |
| Roller Pitch | Choose from 150mm / 100mm / 75mm / 52mm |
| Load Rating | 100kg per metre |
| Supports | Welded steel H support stands with threaded levelling feet (+/- 50mm adjustment)
Two supports for 1000mm, 1500mm and 2000mm length conveyors |
Not exactly what you need?
We are a UK conveyor – this allows us to make fully bespoke products to suit your exact requirements.
Are you looking for something a little different such as:
- Castors / wheels for added mobility
- Adjustable guides
- Twin tier gravity conveyors
- Gravity roller bends
- Ball table sections
- Conveyor systems
- Height adjustment
- Lift up gates
For more info or any questions, please contact us
Delivery Information
All products are collected from our East Yorkshire factory before being delivered to you
Please consider your access restrictions, including door sizes etc prior to placing an order.
Our team will arrange the delivery date with you via a telephone call or email, please ensure there will be somebody available to take the delivery at the given time & date.
It is the customers’ responsibility to safely unload items from our delivery vehicles.
Please speak to a member of our team if you have any questions regarding deliveries.
Phone: 01482 363445
Email: sales@spaceguard.co.uk
Additional information
| Conveyor Length | 1000mm, 1500mm, 2000mm, 2500mm, 3000mm |
|---|---|
| Roller Pitch | 52mm Pitch, 75mm Pitch, 100mm Pitch, 150mm Pitch |
